SKU: 13FP-SD-LCLC-XX

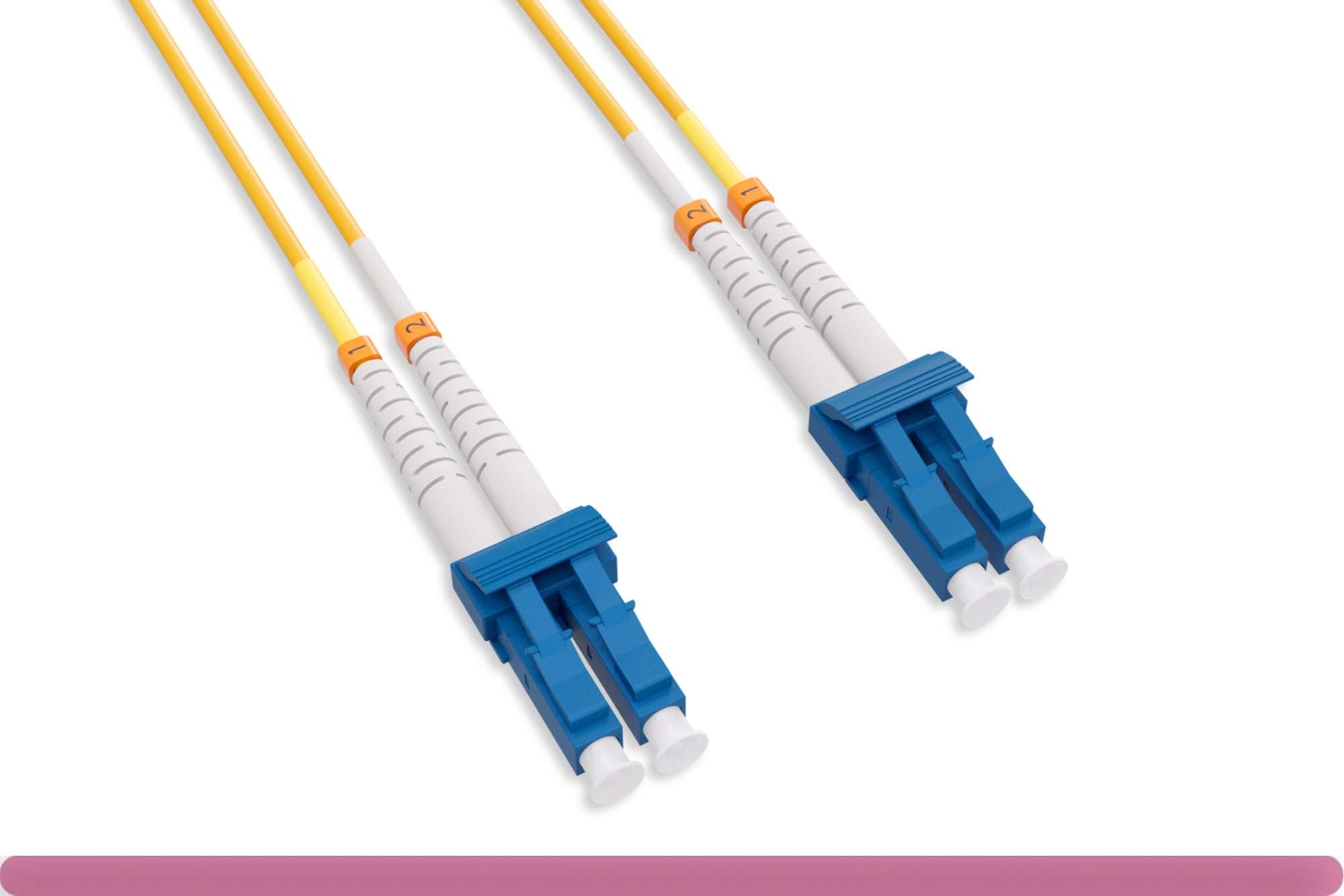

OS2 Short Boot 9/125 LC/LC UPC Duplex Single Mode Fiber Optic Cable
| Part No. | Length |
|---|---|
| 13FP-SD-LCLC-01 | 1 m |
| 13FP-SD-LCLC-HM | 0.5 m |
| 13FP-SD-LCLC-03 | 3 m |
| 13FP-SD-LCLC-04 | 4 m |
| 13FP-SD-LCLC-06 | 6 m |
| 13FP-SD-LCLC-12 | 12 m |
| 13FP-SD-LCLC-25 | 25 m |
| 13FP-SD-LCLC-30 | 30 m |
| 13FP-SD-LCLC-07 | 7 m |
| 13FP-SD-LCLC-08 | 8 m |
| 13FP-SD-LCLC-02 | 2 m |
| 13FP-SD-LCLC-05 | 5 m |
| 13FP-SD-LCLC-15 | 15 m |
| 13FP-SD-LCLC-1H | 1.5 m |
| 13FP-SD-LCLC-10 | 10 m |
Short Boot LC To LC UPC 9/125 Duplex Single Mode Fiber Optic Cable
Yellow Color
100% Compatibility
Plug & Play
Reliable Connection
Stable Performance
RoHS Compliant
Eco Friendly
Description
Description
SHORT BOOT LC TO LC DUPLEX SINGLE-MODE FIBER OPTIC CABLE
- Our high-quality 9/125 single-mode fiber cable with LC/LC connectors is perfect for fast Ethernet, gigabit Ethernet, and other data applications.
- Single-mode fiber cable is an ideal solution for long-range networking.
- LSZH/OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
- Double rated of LSZH and OFNR.
- G657A1 single mode fiber.
- The small LC connector is perfect for high-density network applications.

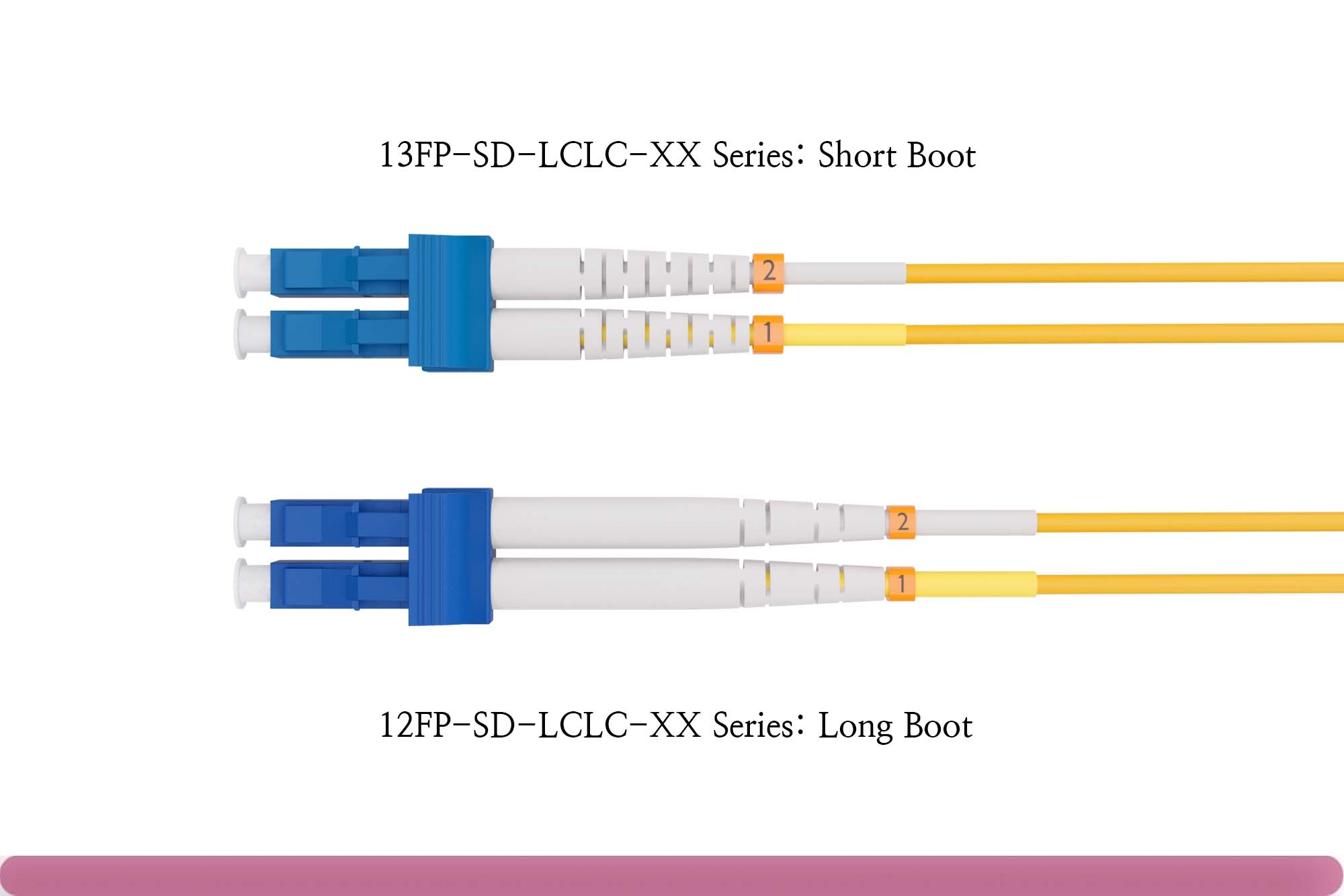

- Shorter boot minimizes large curve loss.
- Corning® glass 9μm core and 125μm cladding.
- Test report included in each cable package.
- UL listed
| Fiber Connector : | LC to LC |
| Fiber Mode: | Single Mode, 9/125 μm |
| Fiber Count: | 2 Strands |
| Polish Type: | UPC to UPC |
| Wave Length: | 1310nm & 1550nm |
| Insertion Loss: | ≤ 0.3 dB |
| Return Loss: | ≥ 55 dB |
| Jacket OD: | 2.0 mm |
| Jacket Material: | LSZH/OFNR |
| Jacket Color: | Yellow |
=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=
