SKU: 16FP-10-LCSC-xx
OM3 LC/SC 10G Multi-Mode Fiber Cable
| Part No. | Length |
|---|---|
| 16FP-10-LCSC-01 | 1 m |
| 16FP-10-LCSC-02 | 2 m |
| 16FP-10-LCSC-03 | 3 m |
| 16FP-10-LCSC-05 | 5 m |
| 16FP-10-LCSC-10 | 10 m |
| 16FP-10-LCSC-15 | 15 m |
| 16FP-10-LCSC-20 | 20 m |
| 16FP-10-LCSC-25 | 25 m |
| 16FP-10-LCSC-07 | 7 m |
LC / SC 10Gb 50/125 OM3 Duplex Multimode Fiber Optic Cable
*3/18/2024 update: jacket material changed from PVC/OFNR to LSZH/OFNR
100% Compatibility
Plug & Play
Reliable Connection
Stable Performance
RoHS Compliant
Eco Friendly
Description
Description

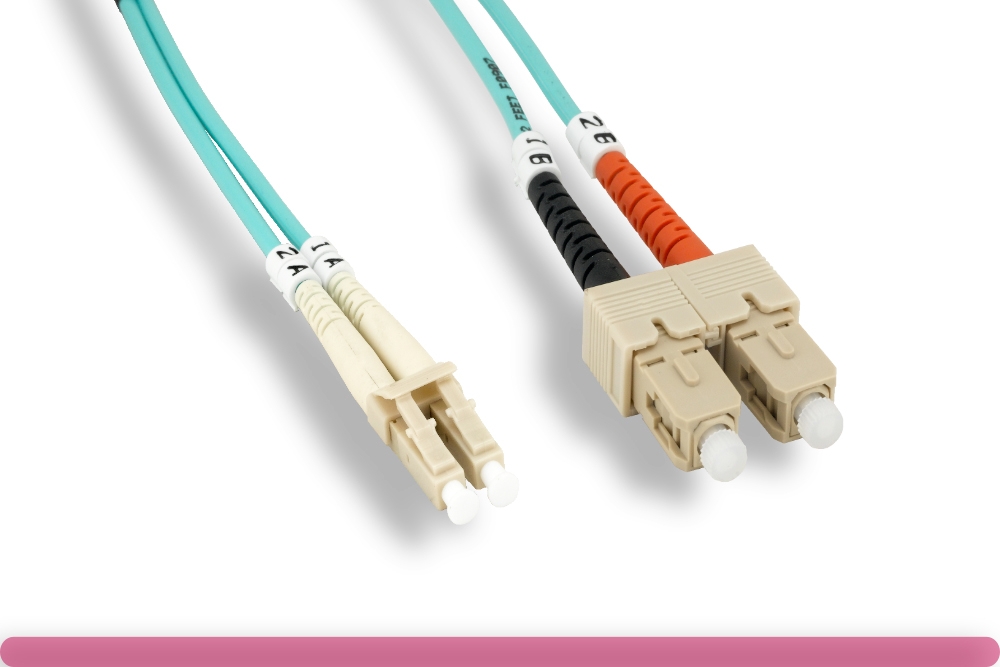

OM3 LC TO SC 10GB MULTI-MODE FIBER OPTIC CABLE
- Our high-quality OM3 multi-mode fiber cable with LC/SC connectors is perfect for high-throughput applications.
- Support 10Gb up to 300 meters, 40Gb, and 100Gb up to 100 meters.
- With an Effective Modal Bandwidth (EMB) of 2000 MHz/km at 850nm.
- LSZH/OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
- The small LC connector is perfect for high-density network applications; the SC connector has a simple push-pull motion for quick installation and removal.
- Use with LED and VCSEL laser light sources.
- Backward compatible with LED-based 50/125 multimode fiber applications.
- Corning® glass 50μm core and 125μm cladding.
- Test report included in each cable package.
- UL listed
| Fiber Connector : | LC to SC |
| Fiber Mode: | OM3, Multimode, 50 / 125 μm |
| Fiber Count: | 2 Strands |
| Polish Type: | UPC to UPC |
| Insertion Loss: | < 0.3 dB |
| Return Loss: | > 35 dB |
| Jacket OD: | 2.0 mm |
| Jacket Material: | LSZH/OFNR (Riser) |
| Jacket Color: | Aqua |
