SKU: 12SS-SCUSCA-XX

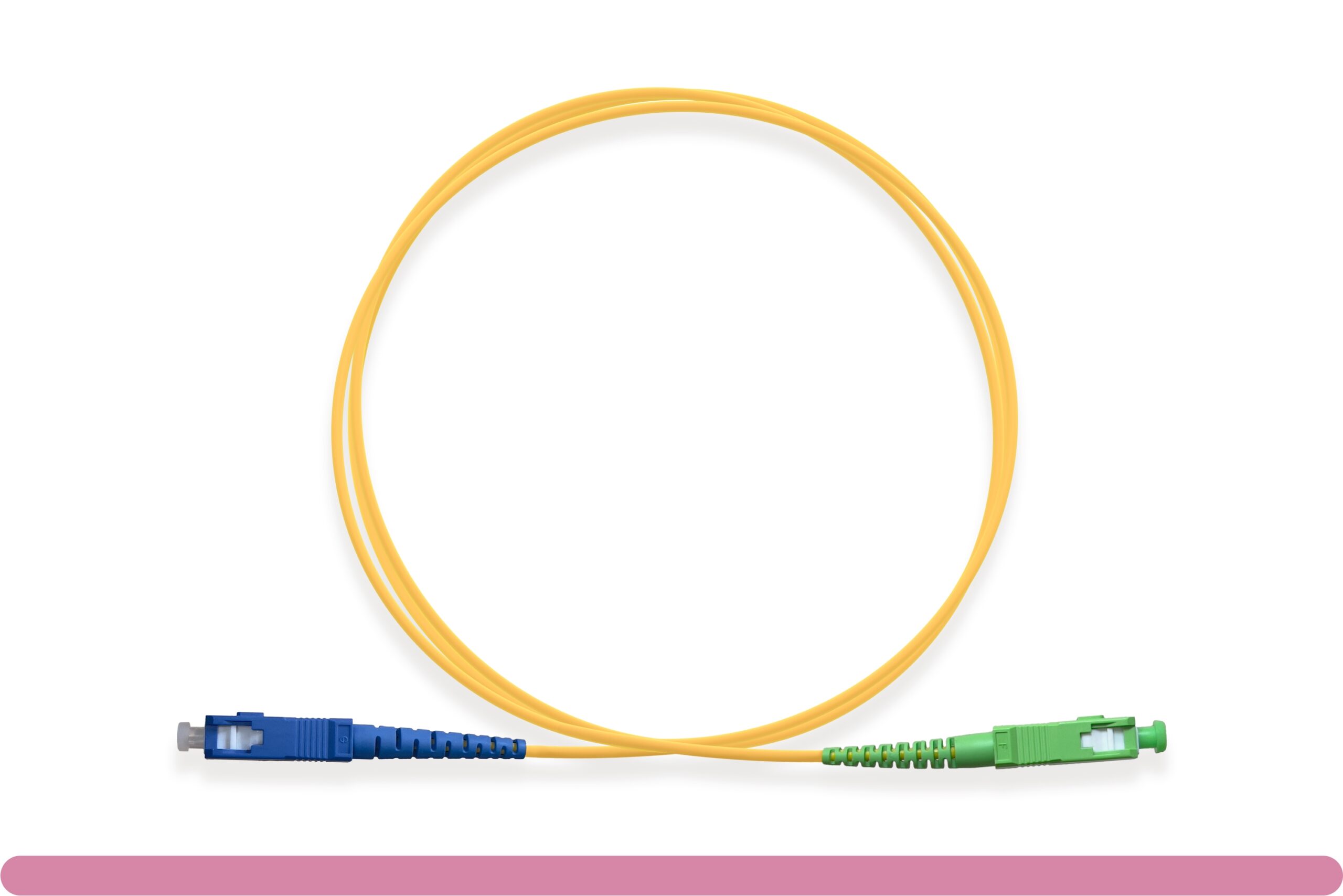

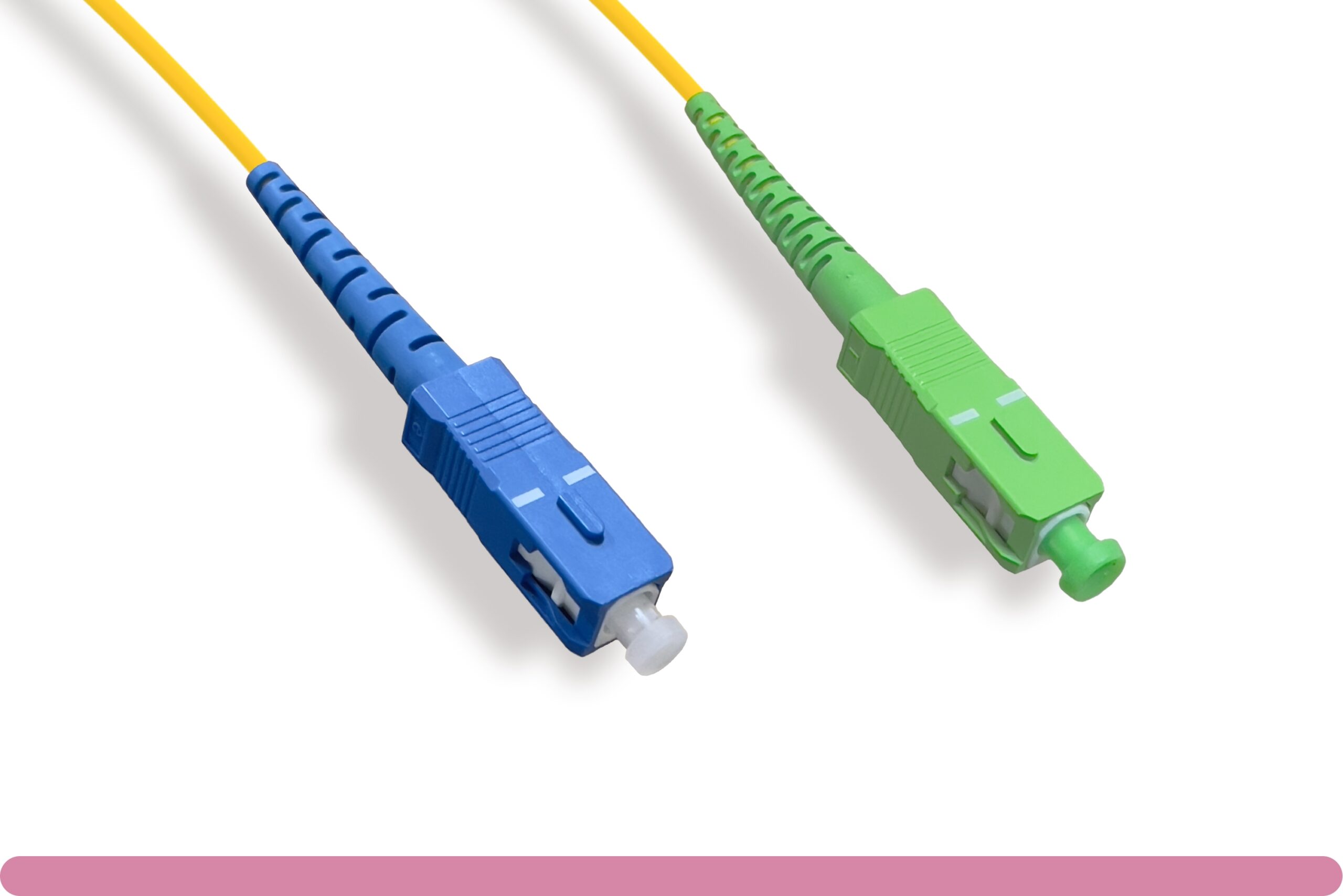

OS2 Simplex Single-Mode SC/UPC to SC/APC 9 /125 Fiber Optic Cable
| Part No. | Length |
|---|---|
| 12SS-SCUSCA-01 | 1 m |
| 12SS-SCUSCA-02 | 2 m |
| 12SS-SCUSCA-03 | 3 m |
| 12SS-SCUSCA-05 | 5 m |
SC/SC UPC to APC 9/125 Simplex Single Mode Fiber Optic Cable
Yellow Color
100% Compatibility
Plug & Play
Reliable Connection
Stable Performance
RoHS Compliant
Eco Friendly
Description
Description
OS2 Simplex Single-Mode SC/UPC to SC/APC 9 /125 Optical Fiber Cable G657A1 OFNR
- Our high quality 9/125 single-mode fiber cable with SC/SC UPC to APC connectors is perfect for fast Ethernet, gigabit Ethernet, and other data applications.
- Single-mode fiber cable is an ideal solution for long-range networking.
- UL listed, LSZH & OFNR (riser) dual-rated.
- Use in upright shafts that run between floors in the building.
- ITU-T standard G657A1.
- Standard SMF yellow jacket.
- Corning core.
- Packing 1 piece in a zip bag
| Fiber Connector : | SC to SC |
| Fiber Mode: | Simplex Single Mode, 9 / 125 |
| Fiber Count: | 1 Strand |
| Polish Type: | UPC to APC |
| Wave Length: | 1310nm&1550nm |
| Insertion Loss: | ≤ 0.3 dB |
| Return Loss: | SC/UPC ≥ 55 dB; SC/APC ≥ 65 dB |
| Jacket OD: | 2.0mm |
| Jacket Material: | PVC |
| Jacket Color: | Yellow |
=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=~=
