SKU: 11MTP-OS2-AFF12-XX

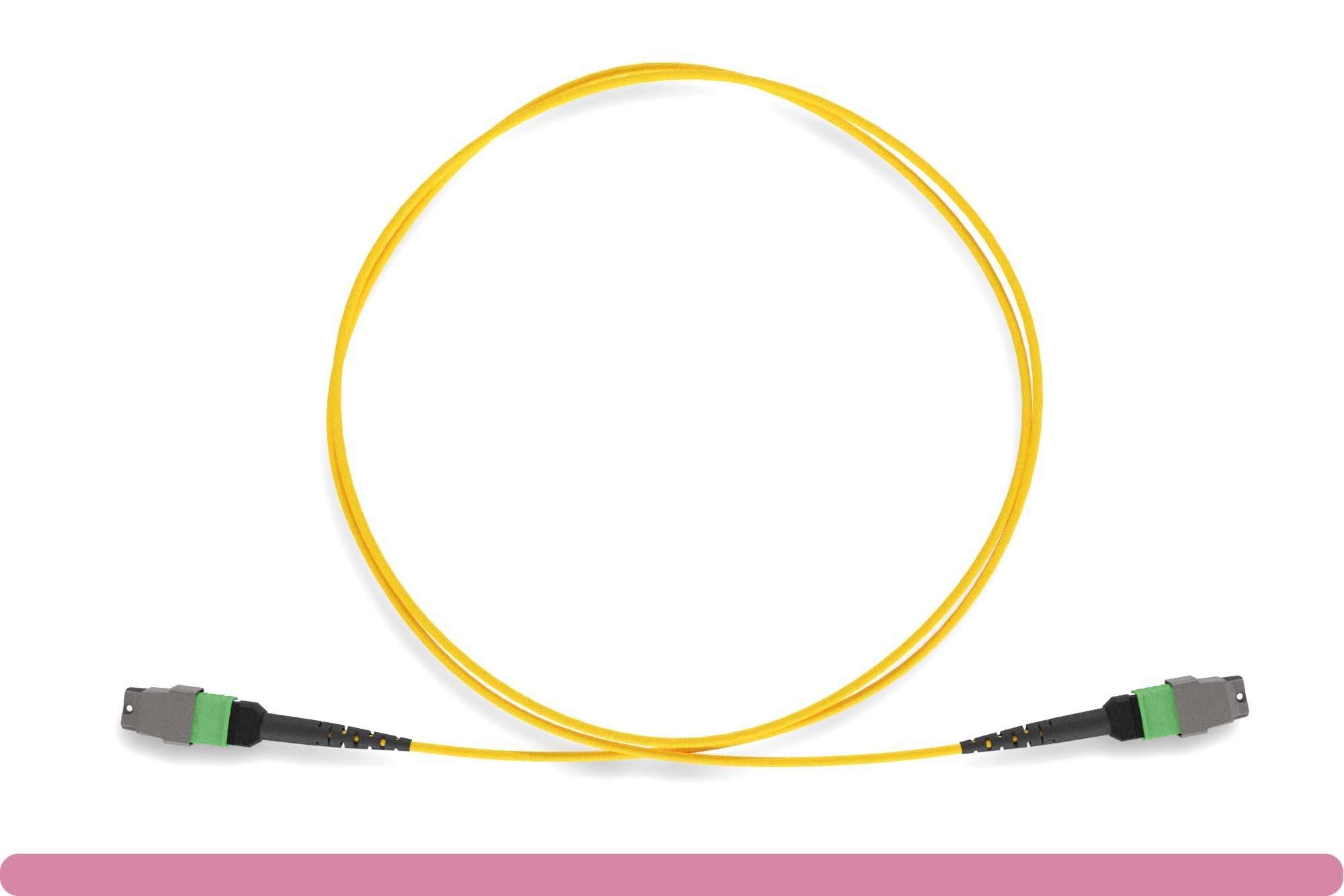

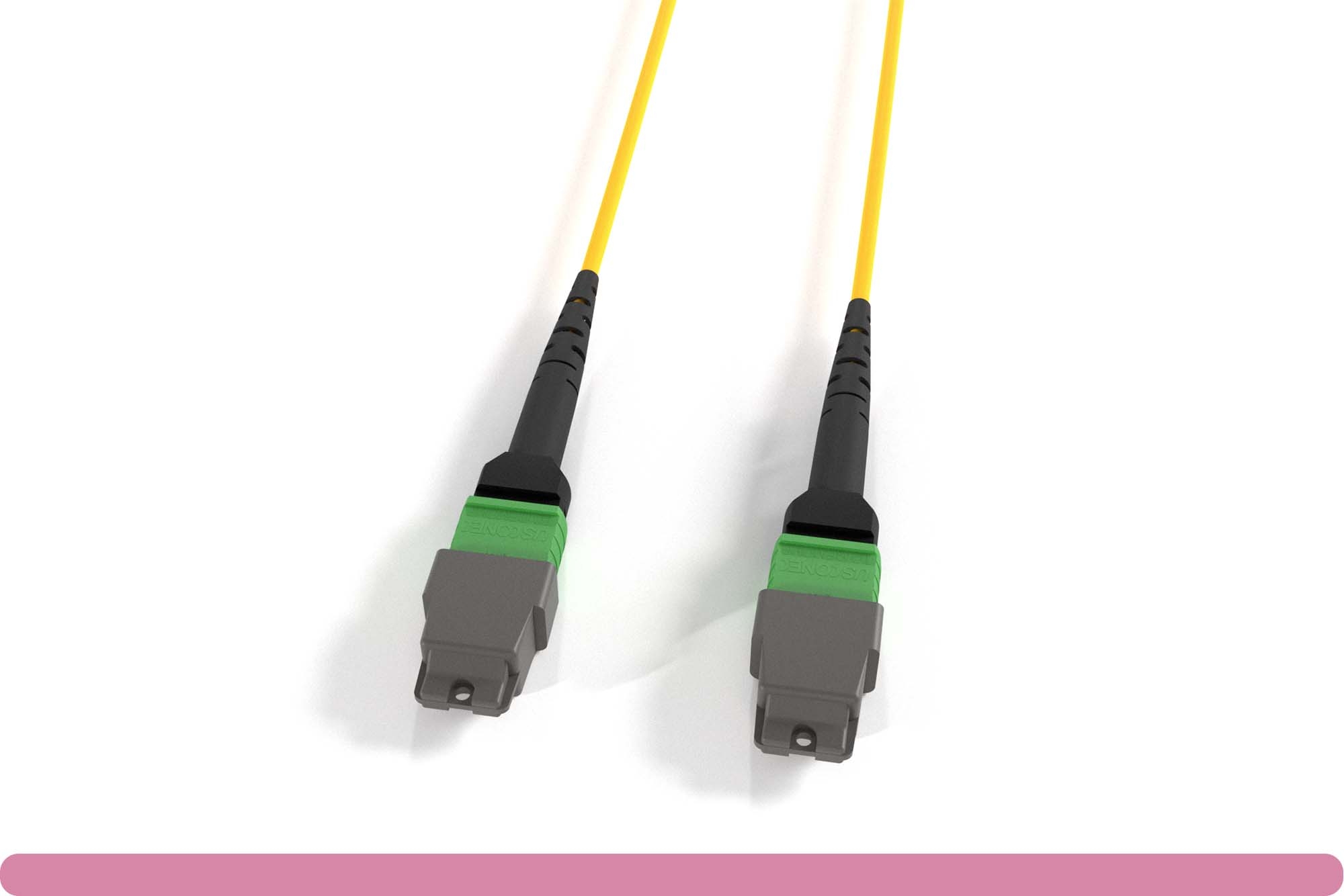

MTP® OS2 Type-A Single-Mode 12 Fibers Trunk Cable F/F
| Part No. | Length |
|---|---|
| 11MTP-OS2-AFF12-05 | 5 m |
| 11MTP-OS2-AFF12-10 | 10 m |
| 11MTP-OS2-AFF12-15 | 15 m |
| 11MTP-OS2-AFF12-20 | 20 m |
| 11MTP-OS2-AFF12-25 | 25 m |
| 11MTP-OS2-AFF12-30 | 30 m |
| 11MTP-OS2-AFF12-07 | 7 m |
MTP® OS2 9/125 Single-Mode 12 Fibers Trunk Optic Cable Type A
100% Compatibility
Plug & Play
Reliable Connection
Stable Performance
RoHS Compliant
Eco Friendly
Description
Description
MTP® OS2 9/125 SINGLE-MODE 12 FIBERS FEMALE TO FEMALE TRUNK CABLE TYPE A
- MTP® OS2 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.
- OS2 fiber cable features higher bandwidth and transmission rates than OS1 cable.
- OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
- The MTP® connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance.
- Connection type A (Straight-Through).
- Corning® glass SMF-28 Ultra.

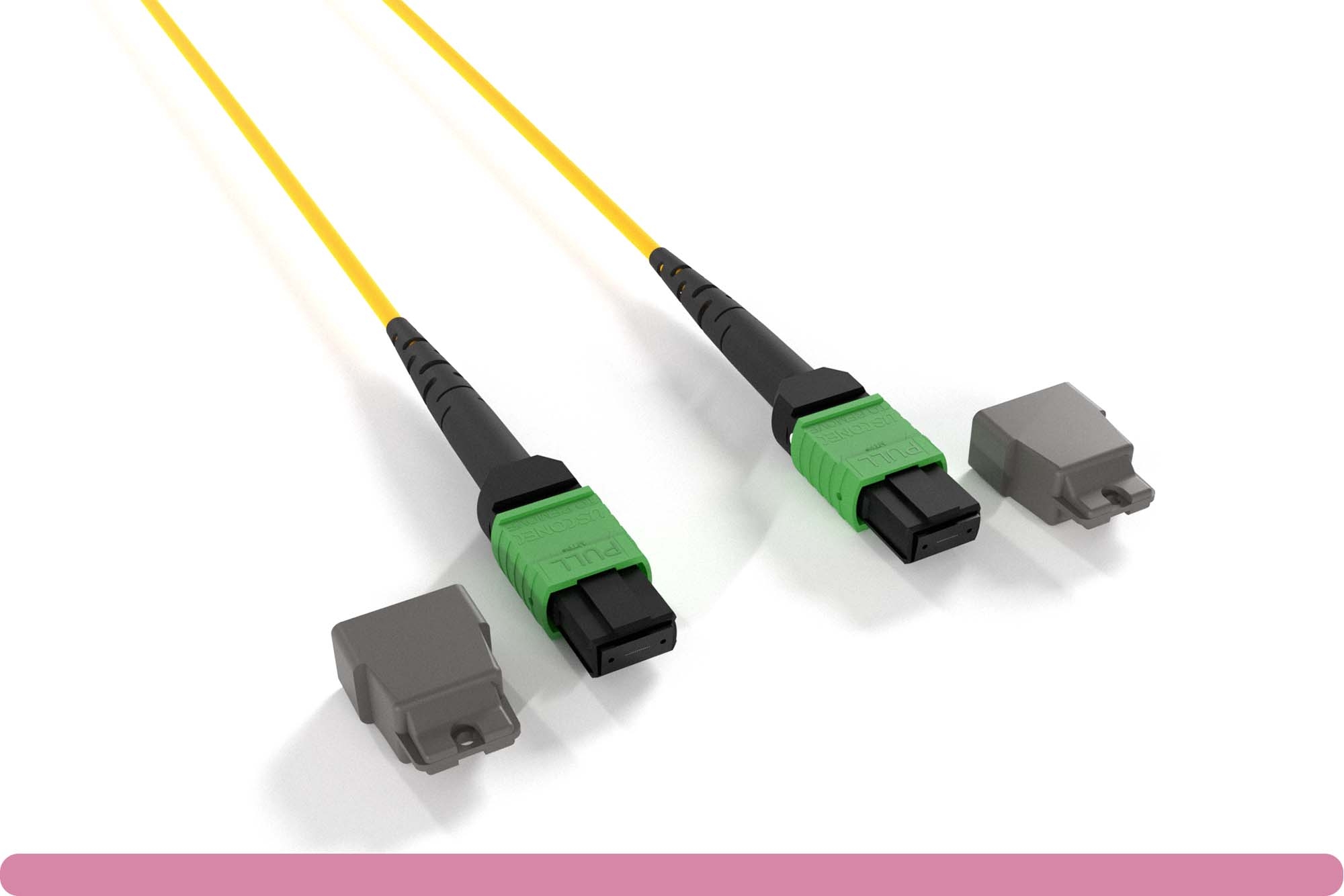

- Dust protective cap included
- UL listed
| Fiber Connector A: | US Conec MTP® Female |
| Fiber Connector B: | US Conec MTP® Female |
| Fiber Mode: | OS2, Single-mode, 9/125 |
| Fiber Count: | 12 Fibers |
| Polish Type: | APC to APC |
| Wavelength | 1310/1550nm |
| Insertion Loss: | ≤ 0.35 dB |
| Return Loss: | ≥ 60 dB |
| Type (Method): | Type A |
| Jacket OD: | 3.0 mm |
| Fiber Grade: | G.657.A1 (Compatible with G.652.D) |
| Jacket Material: | OFNP (Plenum) |
| Jacket Color: | Yellow |
=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=
