Cat.6 Ethernet Patch Cable Matrix Table Vol.1

Posted by

Oliver

July 31, 2026

On July 30, 2024

Click the image to view the full notice

CAT.6 ETHERNET PATCH CABLES MATRIX TABLE VOL.1

Molded Cat.6 UTP Patch Cable

Length/Color	GRAY	BLACK	GREEN	BLUE	RED	YELLOW	ORANGE	WHITE	PURPLE	PINK
6 in.	10X8-221HF	10X8-222HF	10X8-223HF	10X8-224HF	10X8-225HF	10X8-226HF	10X8-227HF	10X8-228HF	10X8-229HF	TBD
1 ft.	10X8-22101	10X8-22201	10X8-22301	10X8-22401	10X8-22501	10X8-22601	10X8-22701	10X8-22801	10X8-22901	10X8-22A01
1.5 ft.	10X8-2211F	10X8-2221F	10X8-2231F	10X8-2241F	10X8-2251F	10X8-2261F	10X8-2271F	10X8-2281F	10X8-2291F	TBD
2 ft.	10X8-22102	10X8-22202	10X8-22302	10X8-22402	10X8-22502	10X8-22602	10X8-22702	10X8-22802	10X8-22902	TBD
3 ft.	10X8-22103	10X8-22203	10X8-22303	10X8-22403	10X8-22503	10X8-22603	10X8-22703	10X8-22803	10X8-22903	10X8-22A03
4 ft.	10X8-22104	10X8-22204	10X8-22304	10X8-22404	10X8-22504	10X8-22604	10X8-22704	10X8-22804	10X8-22904	TBD
5 ft.	10X8-22105	10X8-22205	10X8-22305	10X8-22405	10X8-22505	10X8-22605	10X8-22705	10X8-22805	10X8-22905	10X8-22A05
6 ft.	10X8-22106	10X8-22206	10X8-22306	10X8-22406	10X8-22506	10X8-22606	10X8-22706	10X8-22806	10X8-22906	TBD
7 ft.	10X8-22107	10X8-22207	10X8-22307	10X8-22407	10X8-22507	10X8-22607	10X8-22707	10X8-22807	10X8-22907	10X8-22A07
8 ft.	TBD	10X8-22208	TBD	10X8-22408	TBD	TBD	TBD	TBD	TBD	TBD
10 ft.	10X8-22110	10X8-22210	10X8-22310	10X8-22410	10X8-22510	10X8-22610	10X8-22710	10X8-22810	10X8-22910	10X8-22A10
12 ft.	TBD	10X8-22212	TBD	10X8-22412	TBD	TBD	TBD	TBD	TBD	TBD
14 ft.	10X8-22114	10X8-22214	10X8-22314	10X8-22414	10X8-22514	10X8-22614	10X8-22714	10X8-22814	10X8-22914	10X8-22A14
15 ft.	10X8-22115	10X8-22215	10X8-22315	10X8-22415	10X8-22515	10X8-22615	10X8-22715	10X8-22815	10X8-22915	TBD
20 ft.	10X8-22120	10X8-22220	10X8-22320	10X8-22420	10X8-22520	10X8-22620	10X8-22720	10X8-22820	10X8-22920	TBD
25 ft.	10X8-22125	10X8-22225	10X8-22325	10X8-22425	10X8-22525	10X8-22625	10X8-22725	10X8-22825	10X8-22925	10X8-22A25
30 ft.	10X8-22130	10X8-22230	10X8-22330	10X8-22430	10X8-22530	10X8-22630	10X8-22730	10X8-22830	10X8-22930	TBD
35 ft.	10X8-22135	10X8-22235	10X8-22335	10X8-22435	10X8-22535	10X8-22635	10X8-22735	10X8-22835	10X8-22935	TBD
50 ft.	10X8-22150	10X8-22250	10X8-22350	10X8-22450	10X8-22550	10X8-22650	10X8-22750	10X8-22850	10X8-22950	10X8-22A50
75 ft.	10X8-22175	10X8-22275	10X8-22375	10X8-22475	10X8-22575	TBD	10X8-22775	10X8-22875	10X8-22975	TBD
100 ft.	10X8-221HD	10X8-222HD	10X8-223HD	10X8-224HD	10X8-225HD	10X8-226HD	10X8-227HD	10X8-228HD	10X8-229HD	10X8-22AHD
150 ft.	10X8-221-150	10X8-222-150	TBD	10X8-224-150	TBD	10X8-226-150	TBD	TBD	TBD	TBD

===================================================================================================================

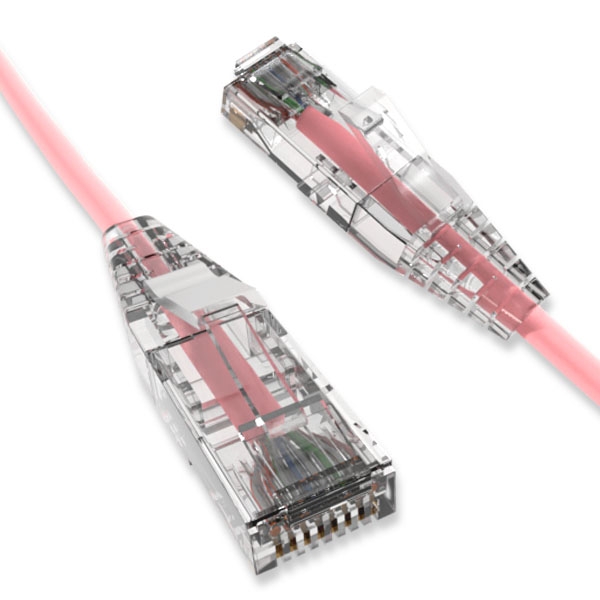

Slim Cat.6 UTP Patch Cable 28AWG

Length/Color	GRAY	BLACK	GREEN	BLUE	RED	YELLOW	ORANGE	WHITE	PURPLE	PINK
6 in.	10X8-28-C1HF	10X8-28-C2HF	10X8-28-C3HF	10X8-28-C4HF	10X8-28-C5HF	10X8-28-C6HF	10X8-28-C7HF	10X8-28-C8HF	10X8-28-C9HF	10X8-28-CAHF
1 ft.	10X8-28-C101	10X8-28-C201	10X8-28-C301	10X8-28-C401	10X8-28-C501	10X8-28-C601	10X8-28-C701	10X8-28-C801	10X8-28-C901	10X8-28-CA01
2 ft.	10X8-28-C102	10X8-28-C202	10X8-28-C302	10X8-28-C402	10X8-28-C502	10X8-28-C602	10X8-28-C702	10X8-28-C802	10X8-28-C902	10X8-28-CA02
3 ft.	10X8-28-C103	10X8-28-C203	10X8-28-C303	10X8-28-C403	10X8-28-C503	10X8-28-C603	10X8-28-C703	10X8-28-C803	10X8-28-C903	10X8-28-CA03
4 ft.	TBD	10X8-28-C204	10X8-28-C304	10X8-28-C404	10X8-28-C504	TBD	TBD	TBD	TBD	TBD
5 ft.	10X8-28-C105	10X8-28-C205	10X8-28-C305	10X8-28-C405	10X8-28-C505	10X8-28-C605	10X8-28-C705	10X8-28-C805	10X8-28-C905	10X8-28-CA05
6 ft.	10X8-28-C106	10X8-28-C206	10X8-28-C306	10X8-28-C406	10X8-28-C506	10X8-28-C606	10X8-28-C706	10X8-28-C806	10X8-28-C906	TBD
7 ft.	10X8-28-C107	10X8-28-C207	10X8-28-C307	10X8-28-C407	10X8-28-C507	10X8-28-C607	10X8-28-C707	10X8-28-C807	10X8-28-C907	10X8-28-CA07
10 ft.	10X8-28-C110	10X8-28-C210	10X8-28-C310	10X8-28-C410	10X8-28-C510	10X8-28-C610	10X8-28-C710	10X8-28-C810	10X8-28-C910	10X8-28-CA10
12 ft.	TBD	TBD	TBD	10X8-28-C412	TBD	TBD	TBD	TBD	TBD	TBD
14 ft.	10X8-28-C114	10X8-28-C214	10X8-28-C314	10X8-28-C414	10X8-28-C514	10X8-28-C614	10X8-28-C714	10X8-28-C814	10X8-28-C914	TBD
15 ft.	10X8-28-C115	10X8-28-C215	10X8-28-C315	10X8-28-C415	10X8-28-C515	10X8-28-C615	10X8-28-C715	10X8-28-C815	10X8-28-C915	10X8-28-C915
20 ft.	10X8-28-C120	10X8-28-C220	10X8-28-C320	10X8-28-C420	10X8-28-C520	10X8-28-C620	10X8-28-C720	10X8-28-C820	10X8-28-C920	10X8-28-C920
25 ft.	10X8-28-C125	10X8-28-C225	10X8-28-C325	10X8-28-C425	10X8-28-C525	10X8-28-C625	10X8-28-C725	10X8-28-C825	10X8-28-C925	10X8-28-C925
