SKU: 16FP-M4-LCST-XX

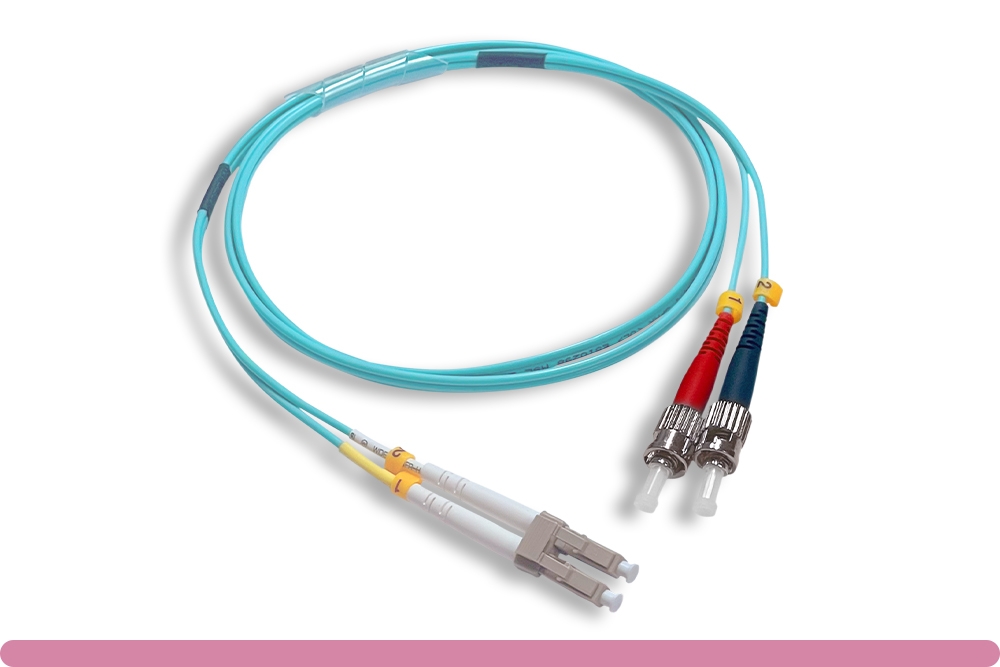

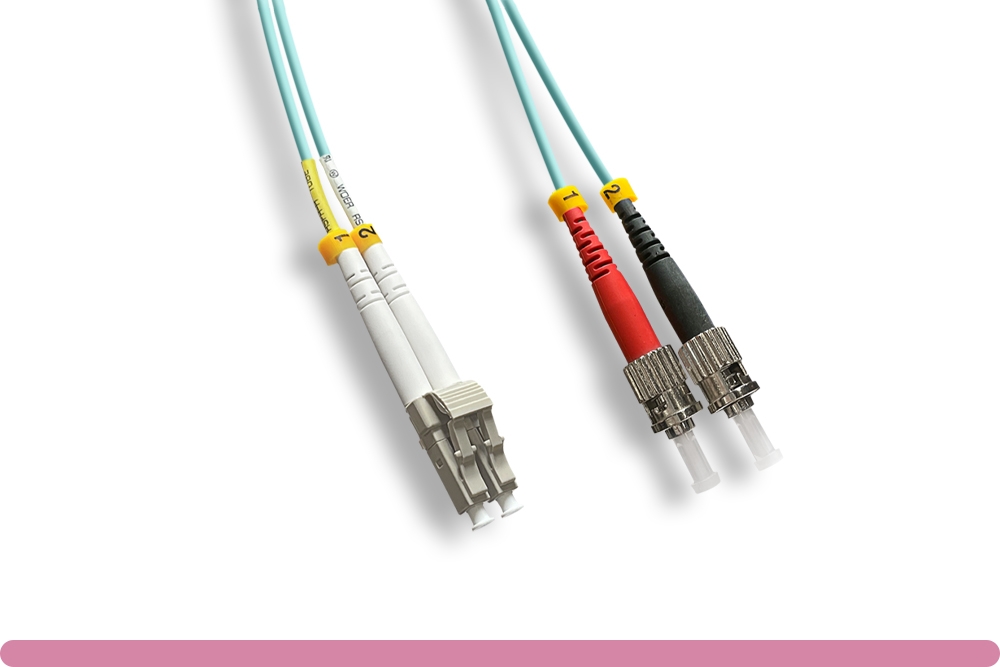

OM4 LC/ST 10G Multi-Mode Fiber Cable
| Part No. | Length |
|---|---|
| 16FP-M4-LCST-01 | 1 m |
| 16FP-M4-LCST-02 | 2 m |
| 16FP-M4-LCST-03 | 3 m |
| 16FP-M4-LCST-05 | 5 m |
| 16FP-M4-LCST-10 | 10 m |
| 16FP-M4-LCST-15 | 15 m |
LC / ST 10Gb 50/125 OM4 Duplex Multimode Fiber Optic Cable
100% Compatibility
Plug & Play
Reliable Connection
Stable Performance
RoHS Compliant
Eco Friendly
Description
Description
OM4 LC/UPC – ST/UPC 10GB MULTI-MODE FIBER CABLE
- Our high-quality OM4 multi-mode fiber cable with LC/ST connectors is perfect for fast Ethernet, fiber channel, gigabit Ethernet, data center, ATM, and other data applications.
- OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
- With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
- Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters.
- OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
- The small LC connector is perfect for high-density network applications.
- The ST connector with additional latches to secure the installation/removal with similar features to LC connectors.
- Use with LED and VCSEL laser light sources.
- Backward compatible with LED-based 50/125 multimode fiber applications.
- Corning® glass 50μm core and 125μm cladding.
- Test report included in each cable package.
- UL listed
| Fiber Connector : | LC to ST |
| Fiber Mode: | OM4, Multimode, 50 / 125 |
| Fiber Count: | 2 Strands |
| Polish Type: | UPC to UPC |
| Insertion Loss: | <= 0.3 dB |
| Return Loss: | >= 35 dB |
| Jacket OD: | 2.0 * 4.1 mm |
| Jacket Material: | OFNR (Riser) |
| Jacket Color: | Aqua |
=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=
