SKU: 16FP-10-LCST-XX
OM3 LC/ST 10G Multi-Mode Fiber Cable
| Part No. | Length |
|---|---|
| 16FP-10-LCST-01 | 1 m |
| 16FP-10-LCST-02 | 2 m |
| 16FP-10-LCST-03 | 3 m |
| 16FP-10-LCST-05 | 5 m |
| 16FP-10-LCST-10 | 10 m |
| 16FP-10-LCST-15 | 15 m |
| 16FP-10-LCST-20 | 20 m |

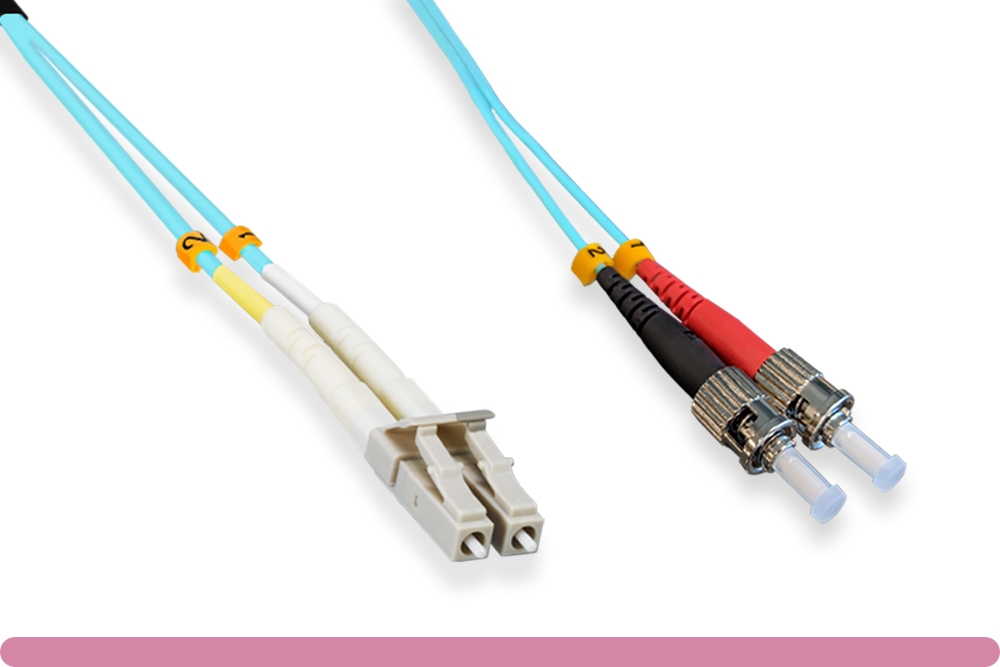

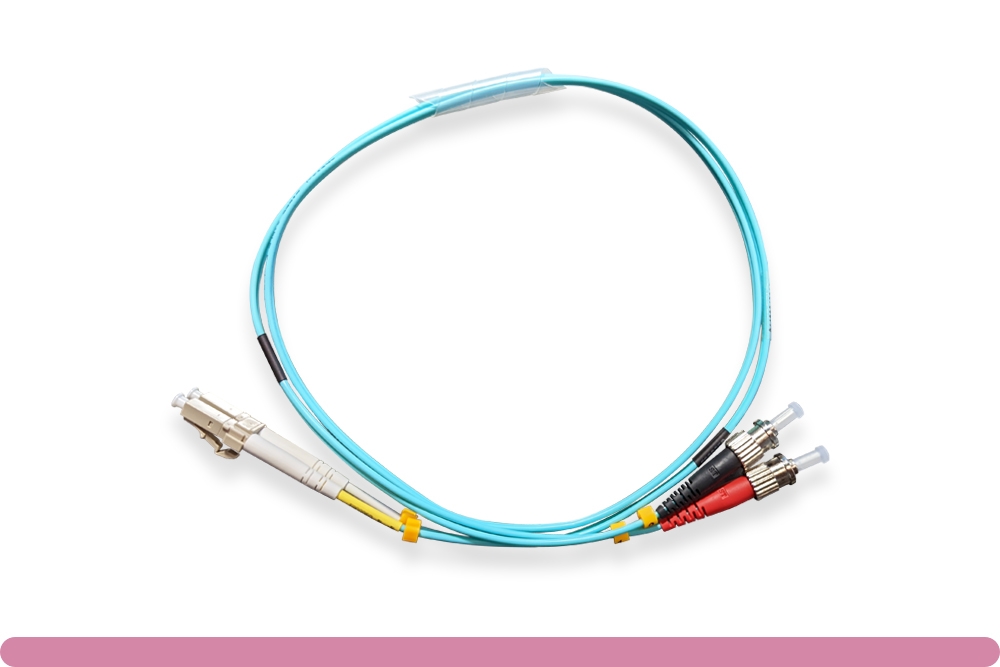

LC / ST 10Gb 50/125 OM3 Duplex Multimode Fiber Optic Cable
100% Compatibility
Plug & Play
Reliable Connection
Stable Performance
RoHS Compliant
Eco Friendly
Description
Description
OM3 LC TO ST 10GB MULTI-MODE FIBER OPTIC CABLE
- Our premium quality OM3 multi-mode fiber cable with LC/ST connectors is perfect for high-throughput applications.
- Support 10Gb up to 300 meters, 40Gb, and 100Gb up to 100 meters.
- LSZH/OFNR (Riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
- The small LC connector is perfect for high-density network applications.
- The other ST connector is designed with a bayonet mount and locking system.
- Use with LED and VCSEL laser light sources.
- Backward compatible with LED-based 50/125 multimode fiber applications.
- Corning® glass 50μm core and 125μm cladding.
- Test report included in each cable package.
- UL listed
| Fiber Connector : | LC to ST |
| Fiber Mode: | OM3, Multi-mode, 50 / 125 μm |
| Fiber Count: | 2 Strands |
| Polish Type: | UPC to UPC |
| Insertion Loss: | < 0.3 dB |
| Return Loss: | > 35 dB |
| Jacket OD: | 2.0 mm |
| Jacket Material: | LSZH/OFNR (Riser) |
| Jacket Color: | Aqua |
