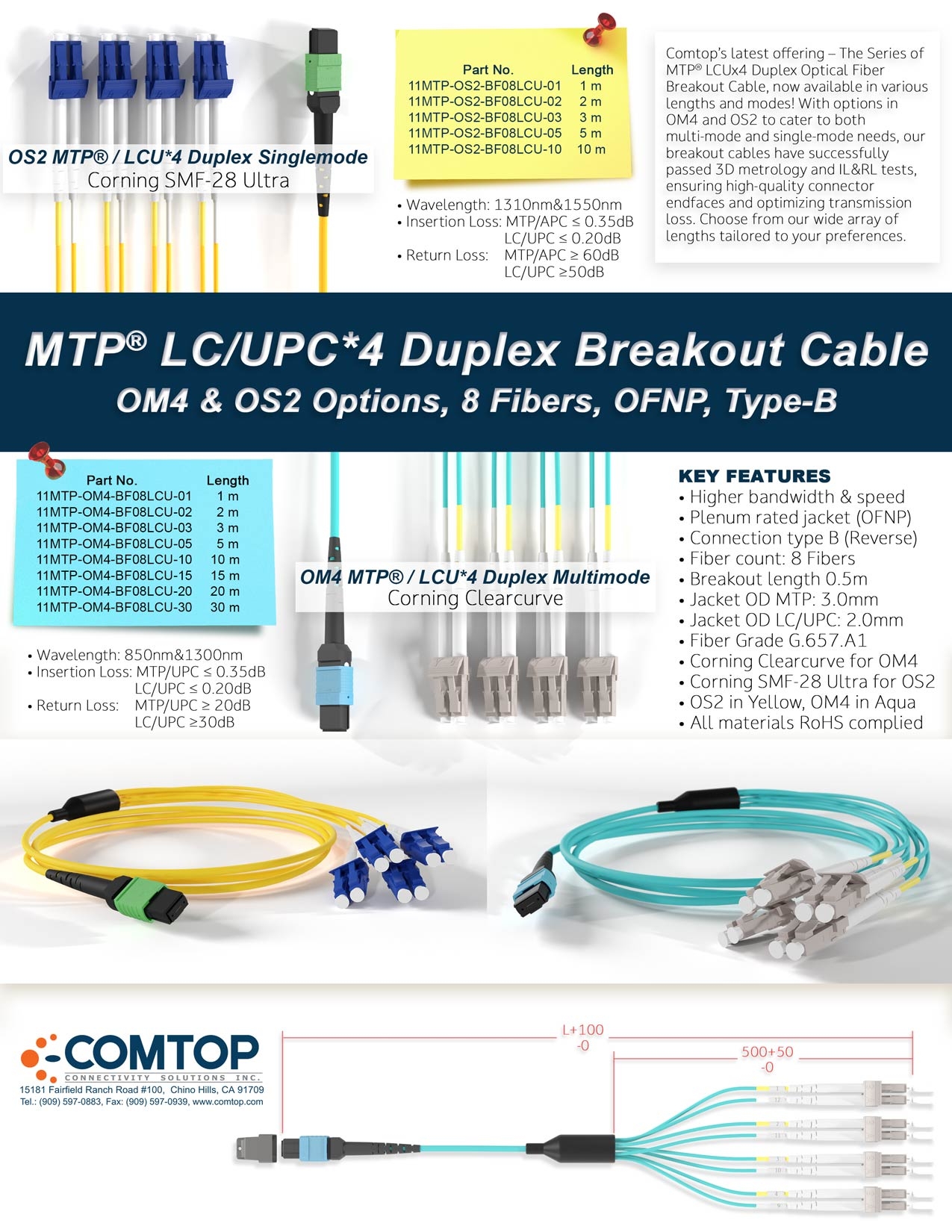

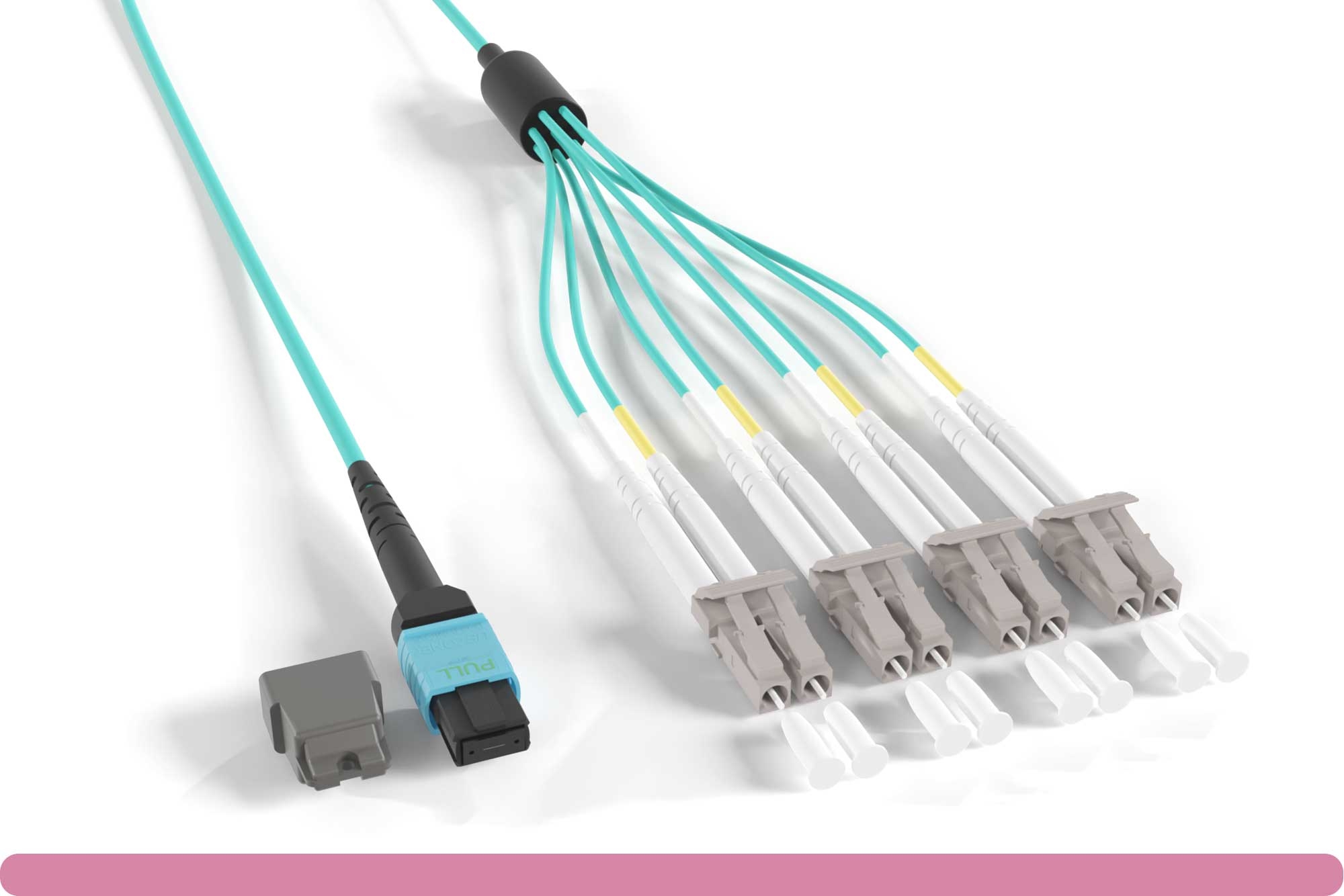

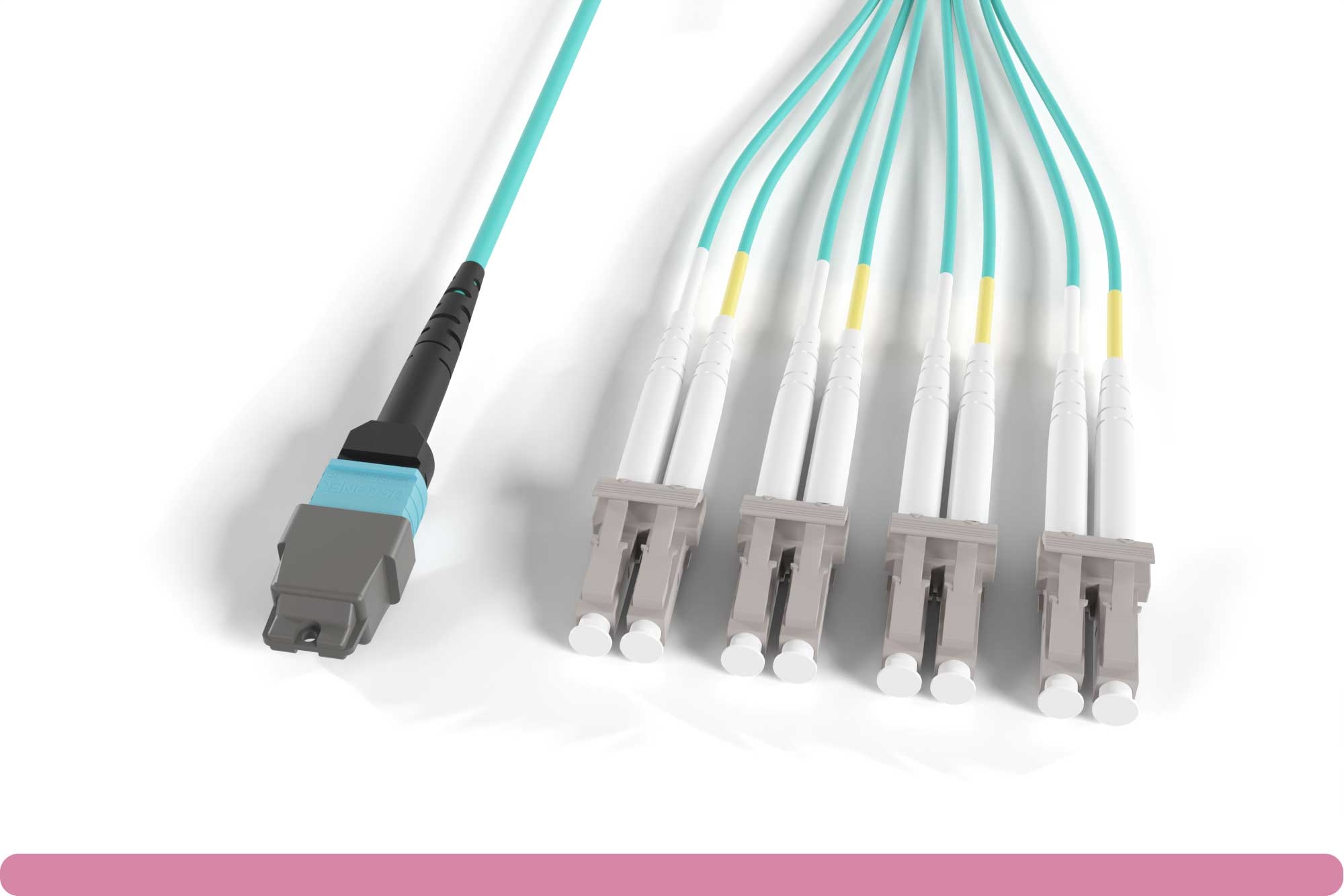

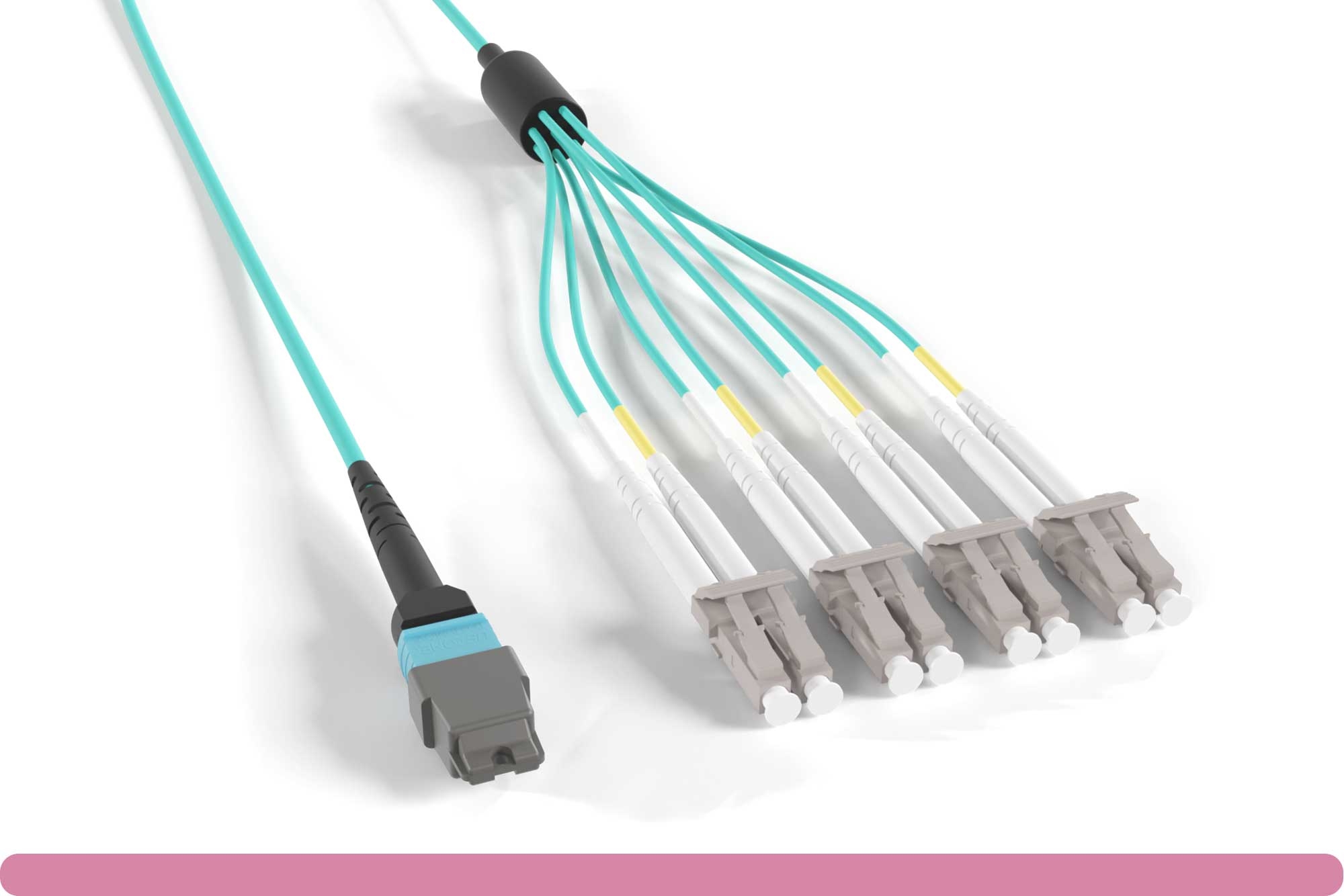

MTP® OM4 To LCU*4 Duplex Multi-Mode 8 Fibers OFNP Breakout Cable Type B

OM4 MTP^® TO LCU*4 MULTI-MODE 8 FIBERS ONFP BREAKOUT CABLE TYPE-B, AQUA

• MTP® OM4 push-pull breakout cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.
• OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
• OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
• The MTP® connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance.
• Connection type B (Reverse), key up to key up.
• Corning® glass 50μm core and 125μm cladding.

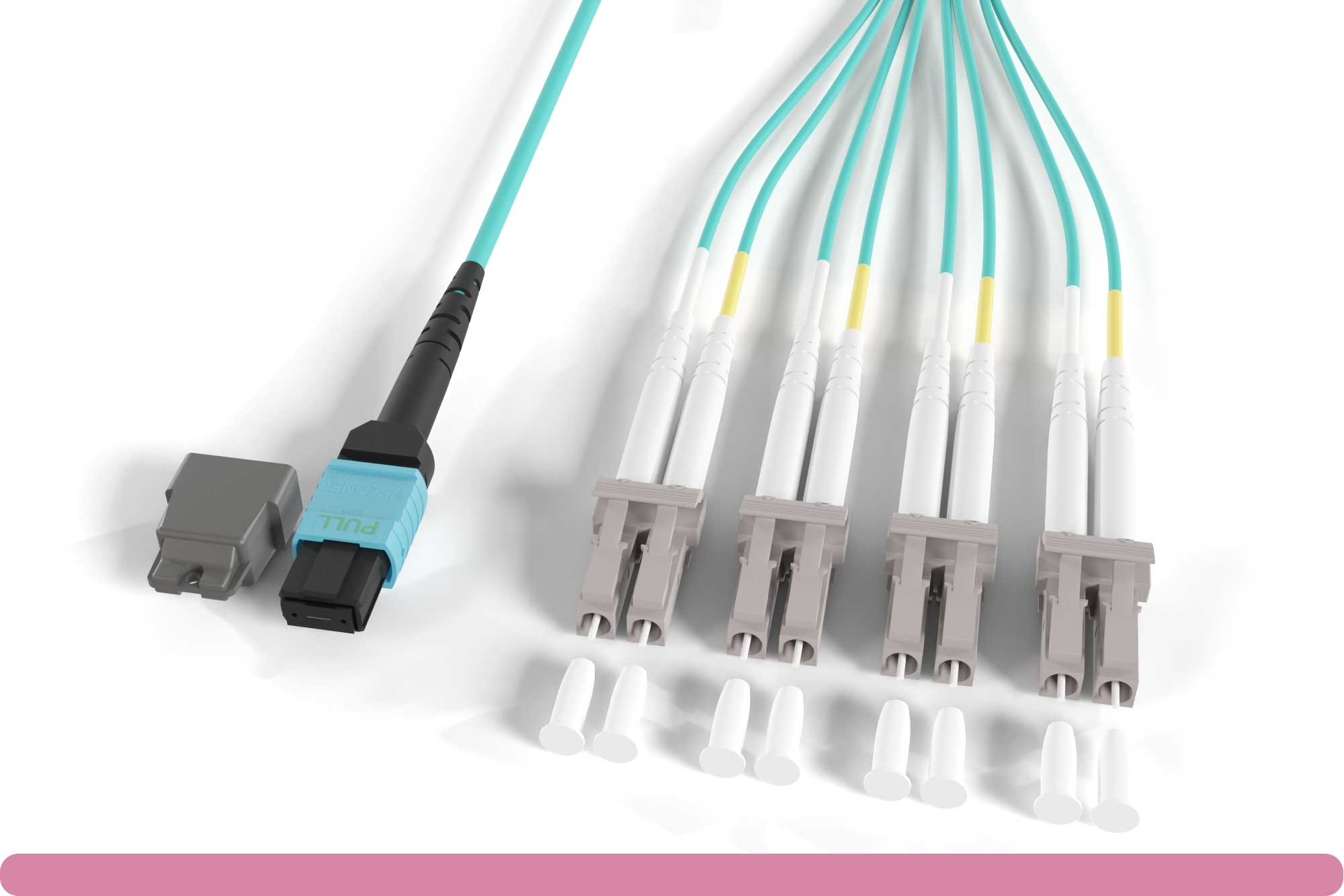

• Dust protective cap included
• 3D test requirement: 100%
• UL listed

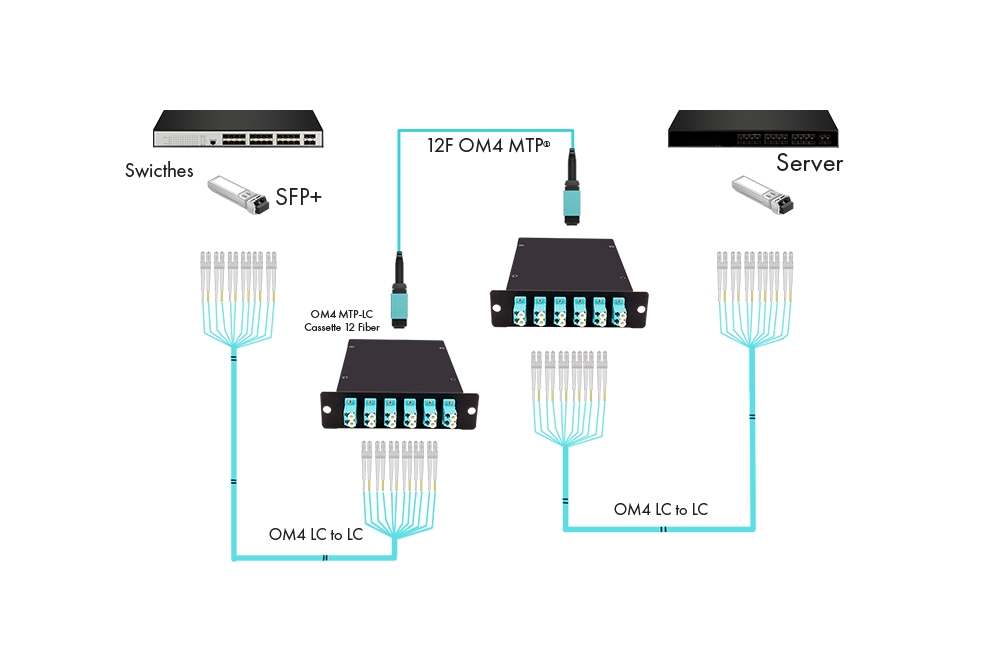

Example of MTP set up with 10G network with server and switches

=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=
