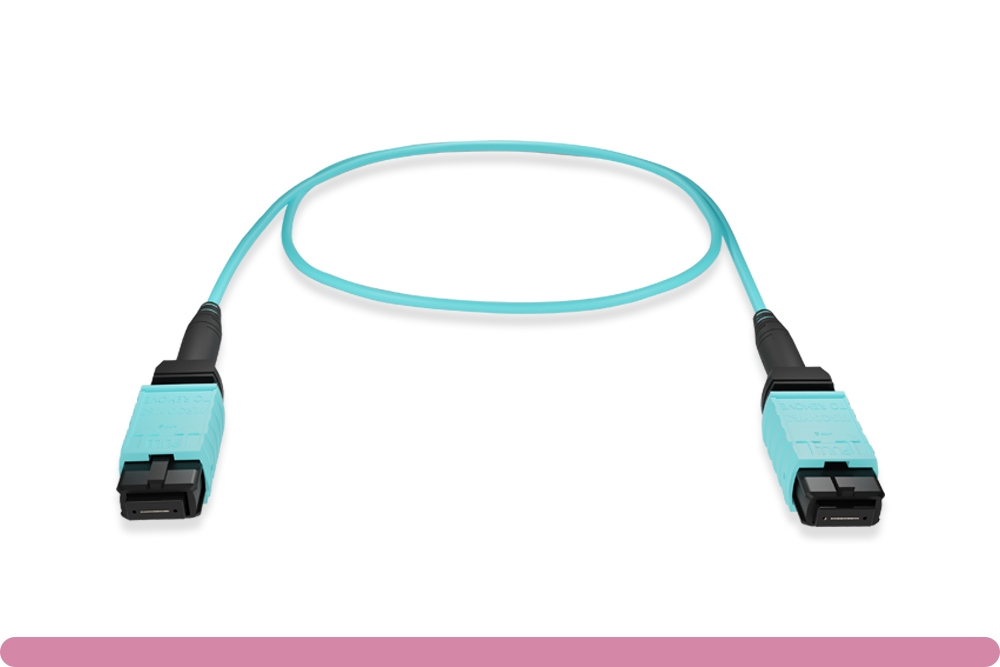

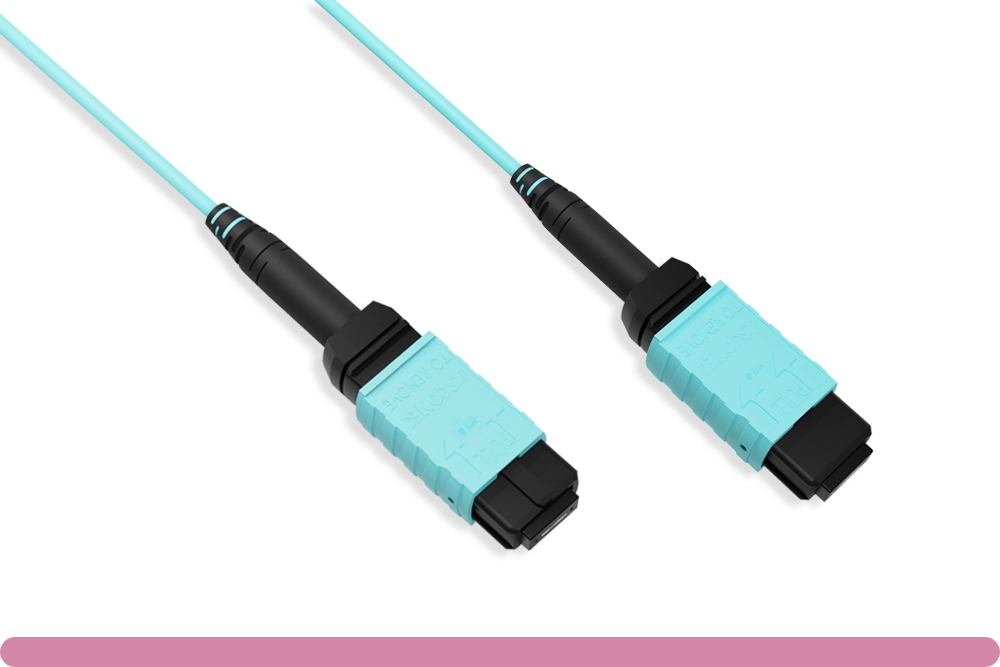

MTP® OM4 Multi-Mode 12 Fibers Trunk Cable Type A

MTP® OM4 MULTI-MODE 12 FIBERS FEMALE TO FEMALE TRUNK CABLE TYPE A

• MTP® OM4 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.
• OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
• With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
• Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters.
• OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
• The MTP® connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance.

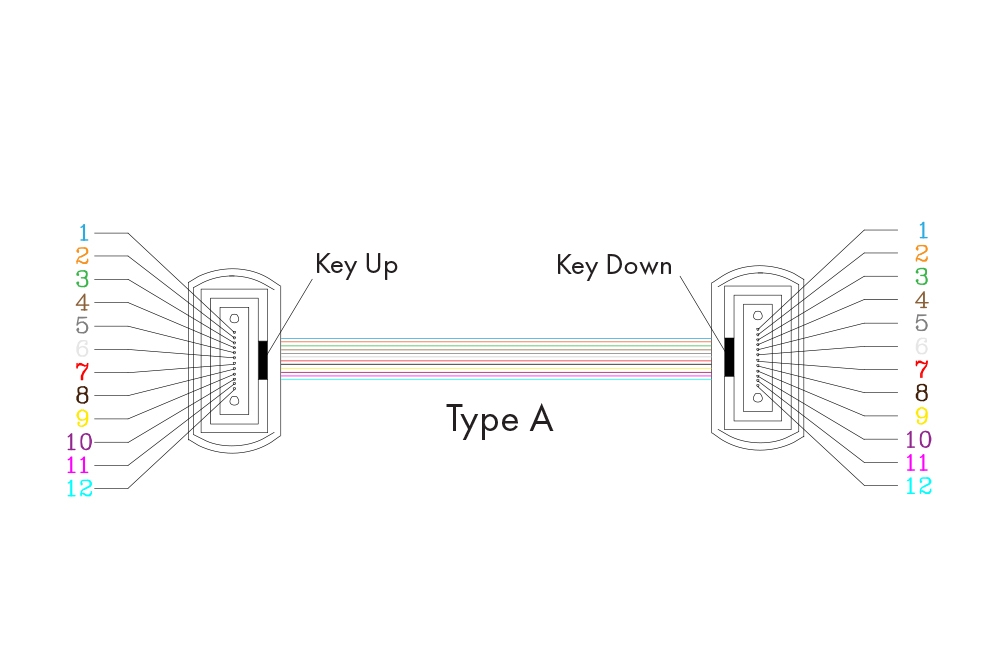

• Connection type A (Straight through), key up to key down.
• Use LED and VCSEL laser light sources.
• Corning® glass 50μm core and 125μm cladding.

• 100% Tested with report included in each cable package.

• Dust protective cap included
• UL listed

Example of MTP set up with 10G network with server and switches

=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=`=.=
